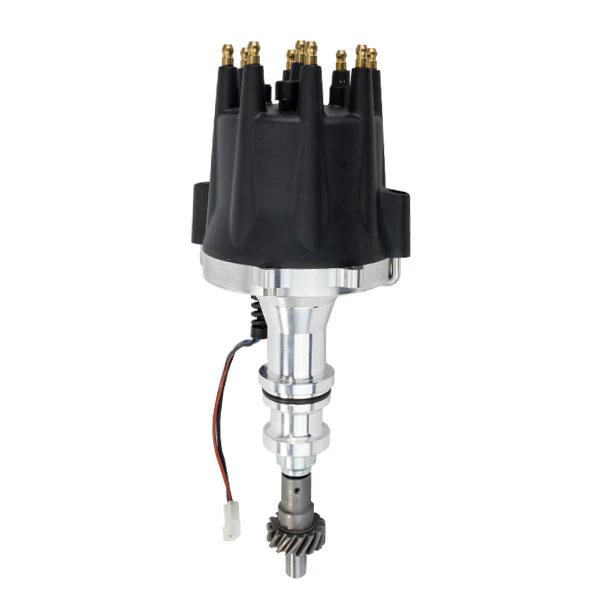

TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals, a slip collar, and a color-matched wire retainer.

This distributor is designed for a 12-volt electrical system with an alternator. It is not compatible with a generator and cannot be used with a ballast resistor. Requires the use of an ignition control system and external ignition coil.

Compatible with:
FORD BIG BLOCK "385" V8
• 6.1 L / 370 in3
• 7.0 L / 429 in3
• 7.5 L / 460 in3

FORD CLEVELAND "335" V8
• 5.8 L / 351 in3 often referred to as "351C"

FORD MODIFIED "335" V8
• 5.8 L / 351 in3 often referred to as "351M"
• 6.6 L / 400 in3

NOTE: Will not fit 351W

Trigger Type	Magnetic
Advance Type	Mechanical
Cap Color	Available in Black, Blue, Red
Terminal Gender	Male
Mechanical Tach Drive	No
Slip Collar	Yes
Coil Included	No
Coil Type	External
Coil Output	35,000+ V
Gear Material	Steel
Housing Material	Machined Aluminum
Ignition Box Required	Yes
Marine Use	No
Cylinders	8

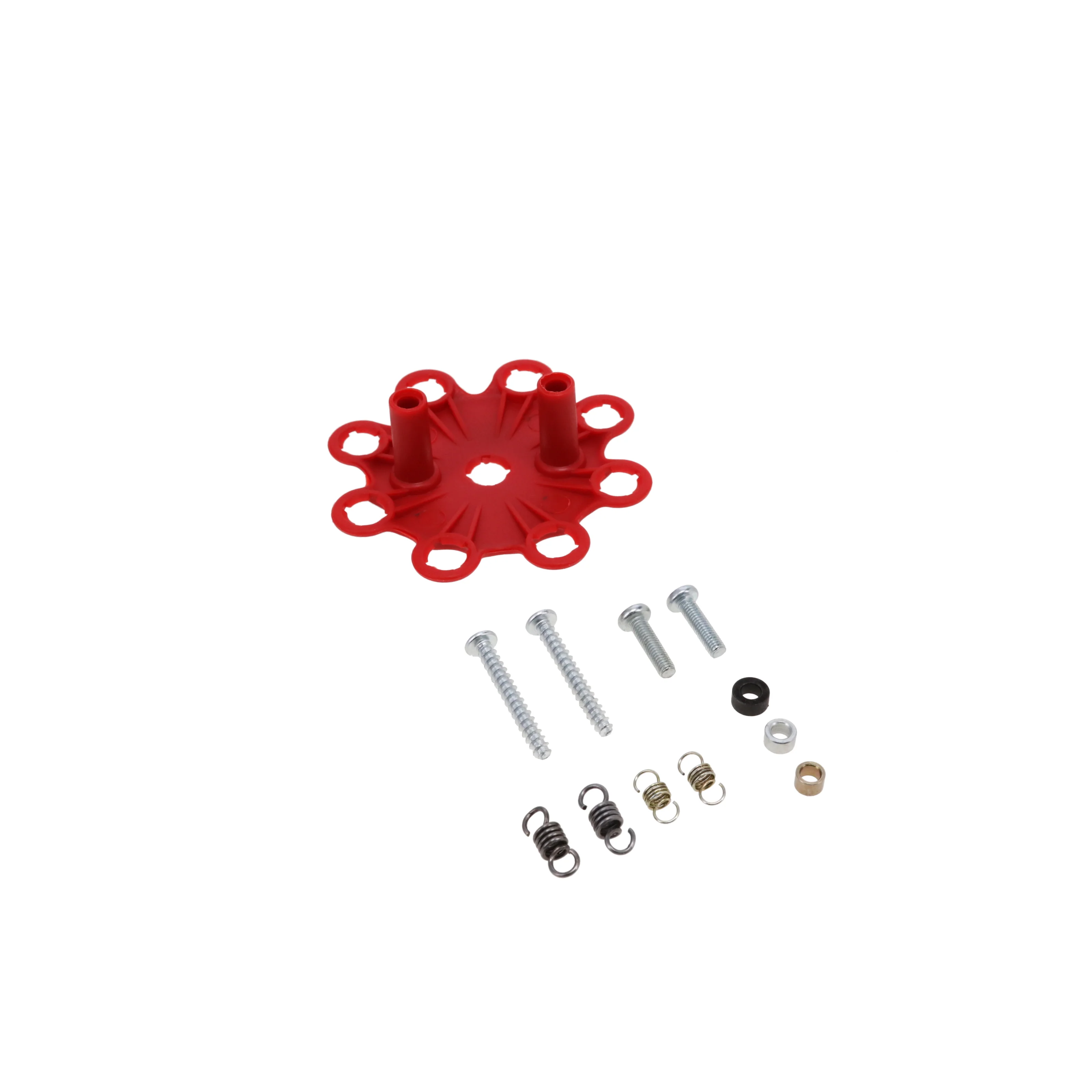

3 Bushings and 4 Springs for Mechanical Advance	Included
Color-Matched Spark Plug Wire Retainer with Screws	Included
