29" Universal Chevy Single Fan Pro Flow Radiator Kit

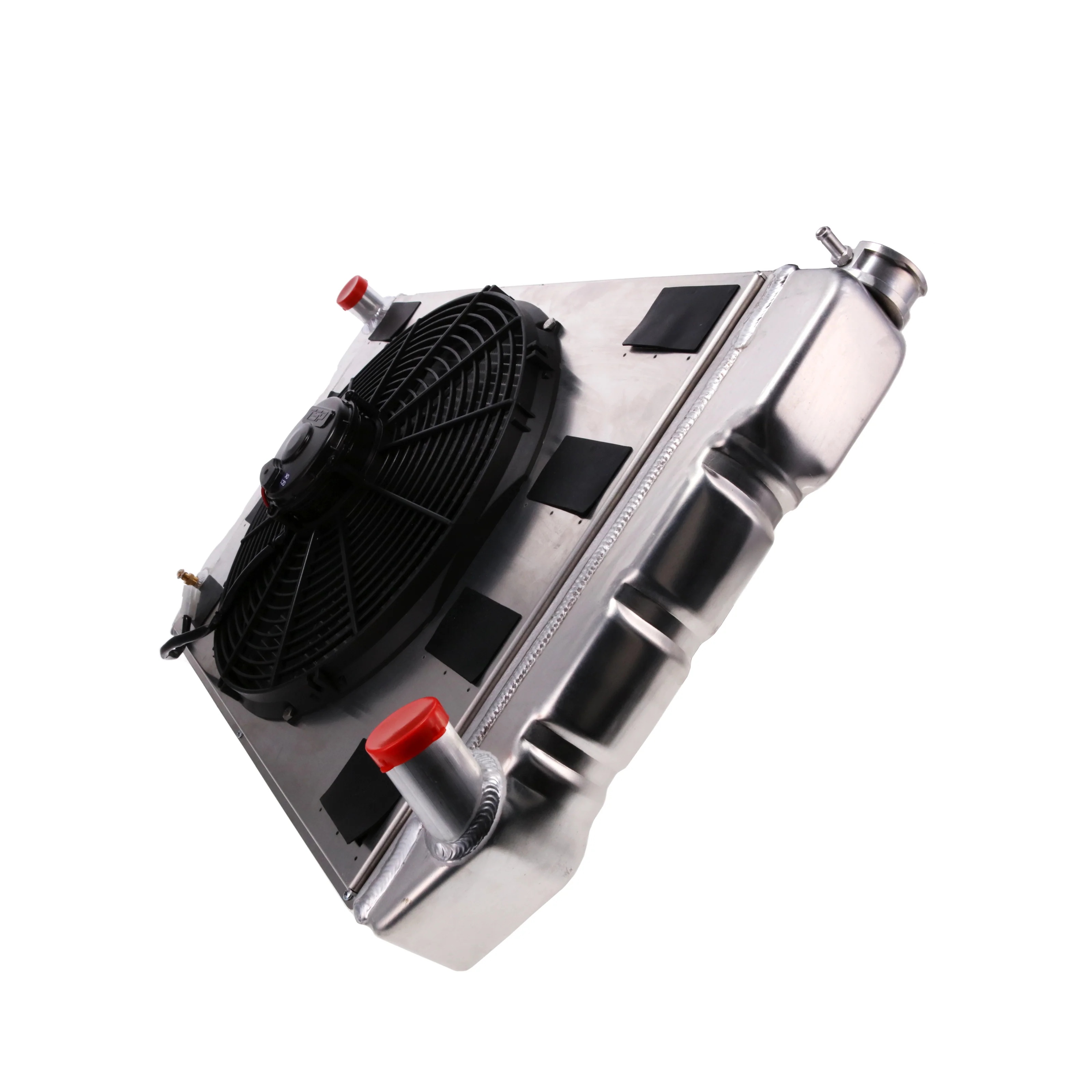

Pro Series radiator kits from Top Street Performance combine our best cooling components in one package. Included is an aluminum radiator, fan shroud, and high-flow fan.

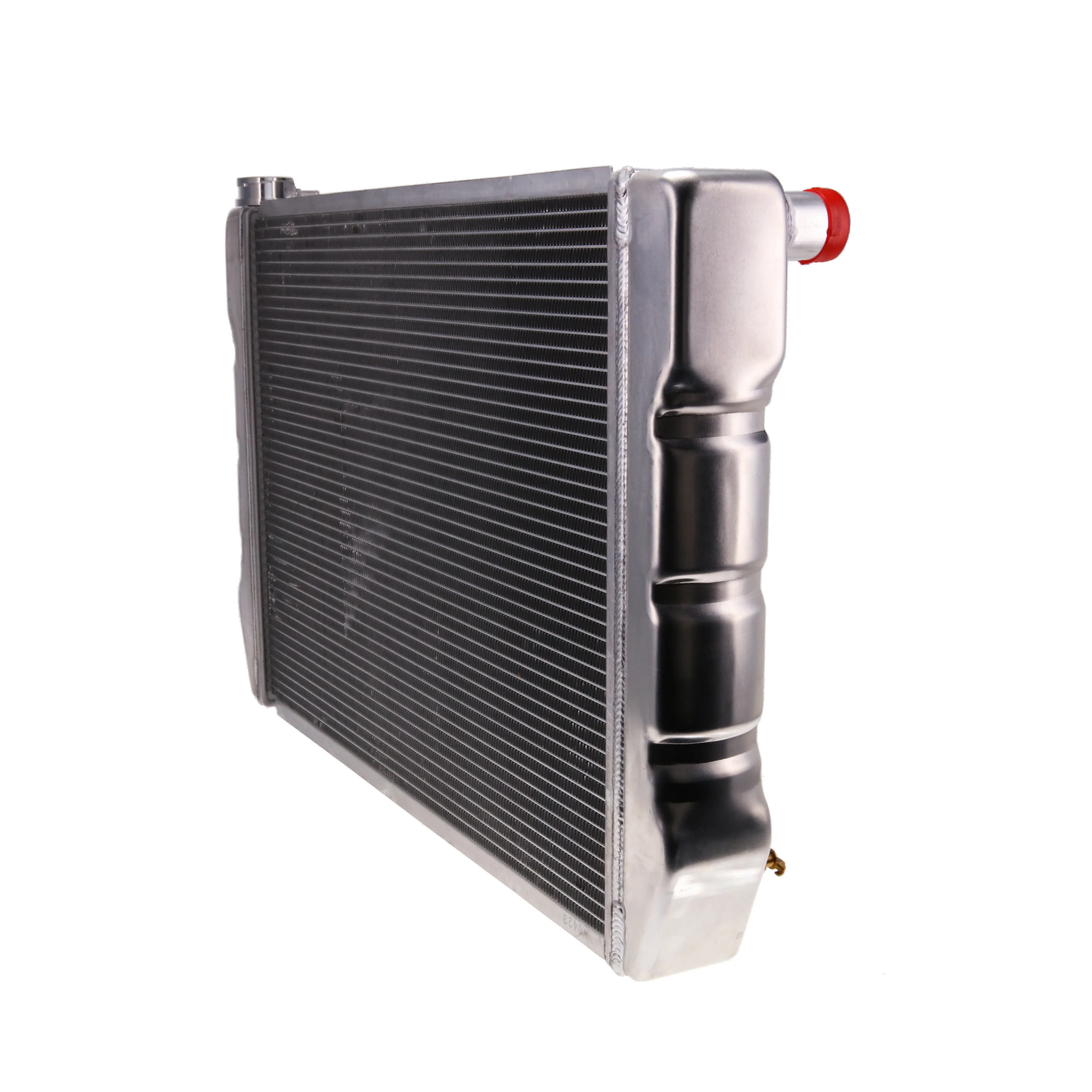

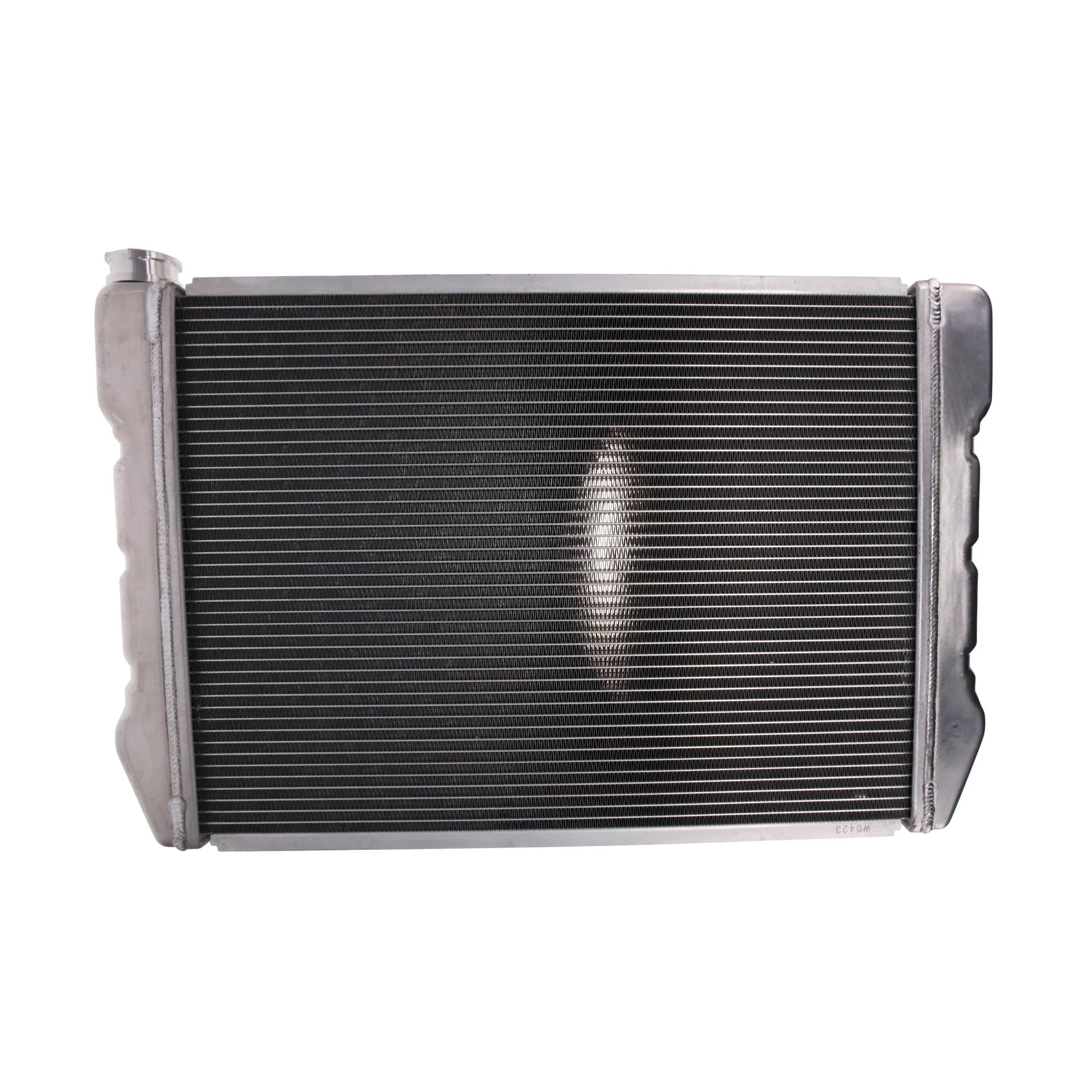

Aluminum Radiator
Using intelligent design choices, TSP's radiators have a great deal to offer. Their aluminum construction is completely TIG welded and use no epoxy, meaning you can be sure of their durability. They feature a crossflow design with two rows of 1" aluminum tubes, surrounded by 17 fins per inch for maximum cooling.
Custom Fan Shroud
TSP's aluminum fan shroud is designed to concentrate airflow to your cooling fan. Composed of high-quality aluminum, it fits perfectly with a TSP universal radiator. It also comes complete with rubber flaps for higher speeds when airflow through the grill increases.
Pro Flow Cooling Fan
TSP's Pro Flow universal fans are designed for maximum airflow, featuring heavy duty motors and a deep shroud design. Like our other fans, they feature computer-balanced blades for long-lasting reliability and 1,800 CFM.
Compatible with:
UNIVERSAL
| Amperage Draw | 14.00 A |
| Blade Color | Black |
| Blade Color | Black |
| Blade Material | Plastic |
| Blade Type | Straight |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Core Fin Quantity | 17 per sq. in. |
| Core Height | 19.000 in. |
| Core Material | Aluminum |
| Core Row Quantity | 2 |
| Core Thickness | 2.250 in. |
| Core Tube Inside Diameter | 1.000 in. |
| Core Width | 24.250 in. |
| Down Flow Or Cross Flow Type | Cross Flow |
| Electrical Or Mechanical Fan | Electrical |
| Engine Oil Cooler Included | No |
| Fan 1 Blade Quantity | 10 |
| Fan 1 Diameter | 16.000 in. |
| Fan Clutch Mounted | No |
| Fan Housing Finish | Black |
| Fan Quantity | 1 |
| Frame Included | No |
| Grade Type | Performance |
| Inlet Diameter | 1.500 in. |
| Inlet Location | Upper Driver Side |
| Maximum Air Flow | 2000 cfm |
| Mounting Hardware Included | No |
| Outlet Diameter | 1.750 in. |
| Outlet Location | Lower Passenger Side |
| Overall Depth | 6.250 in. |
| Overall Height | 19.250 in. |
| Overall Width | 29.000 in. |
| Petcock Included | Yes |
| Radiator Cap Included | No |
| Shroud Color | Silver |
| Shroud Included | Yes |
| Shroud Material | Aluminum |
| Tank Material | Aluminum |
| Thermostat Included | No |
| Transmission Oil Cooler Included | No |
| Voltage | 12 V |
