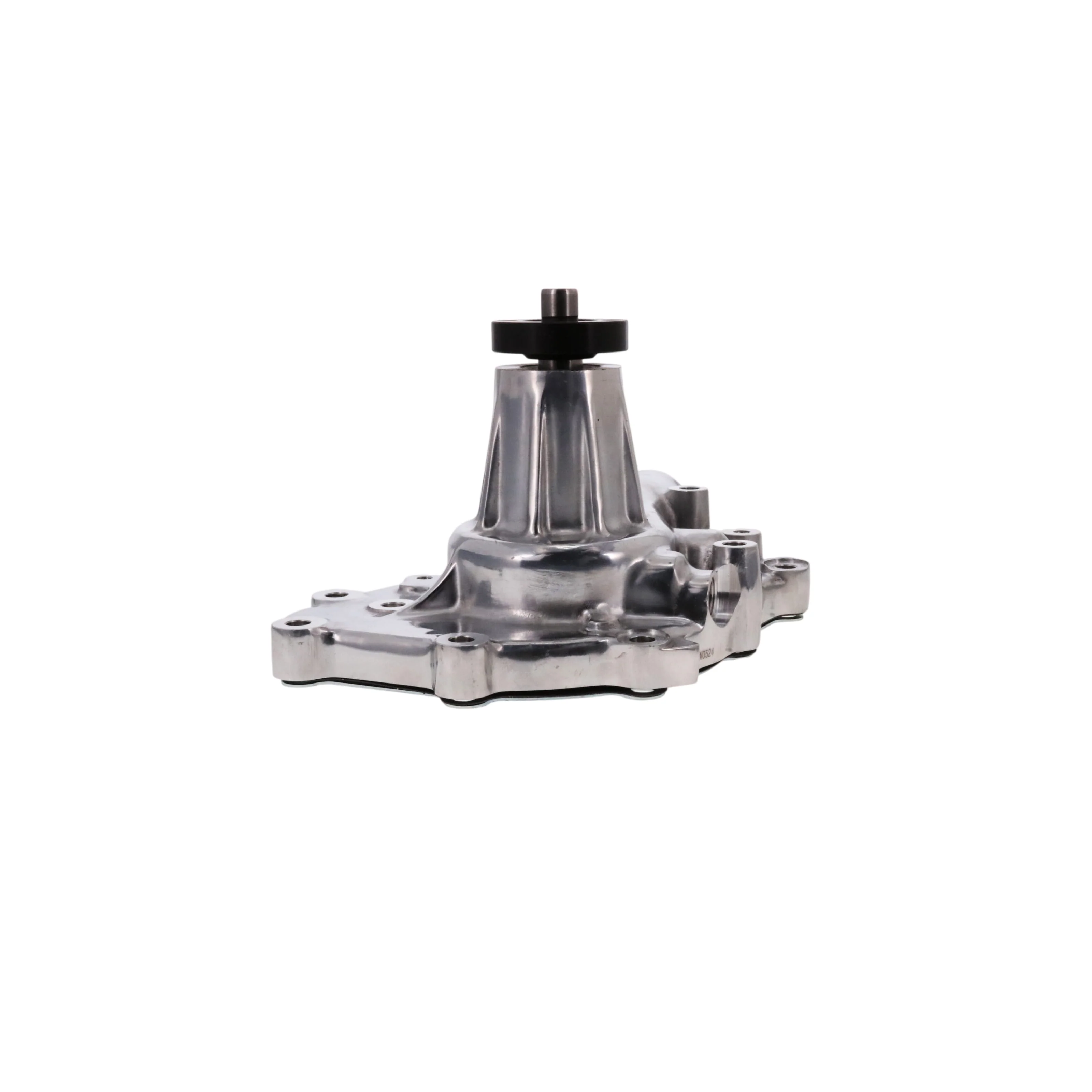

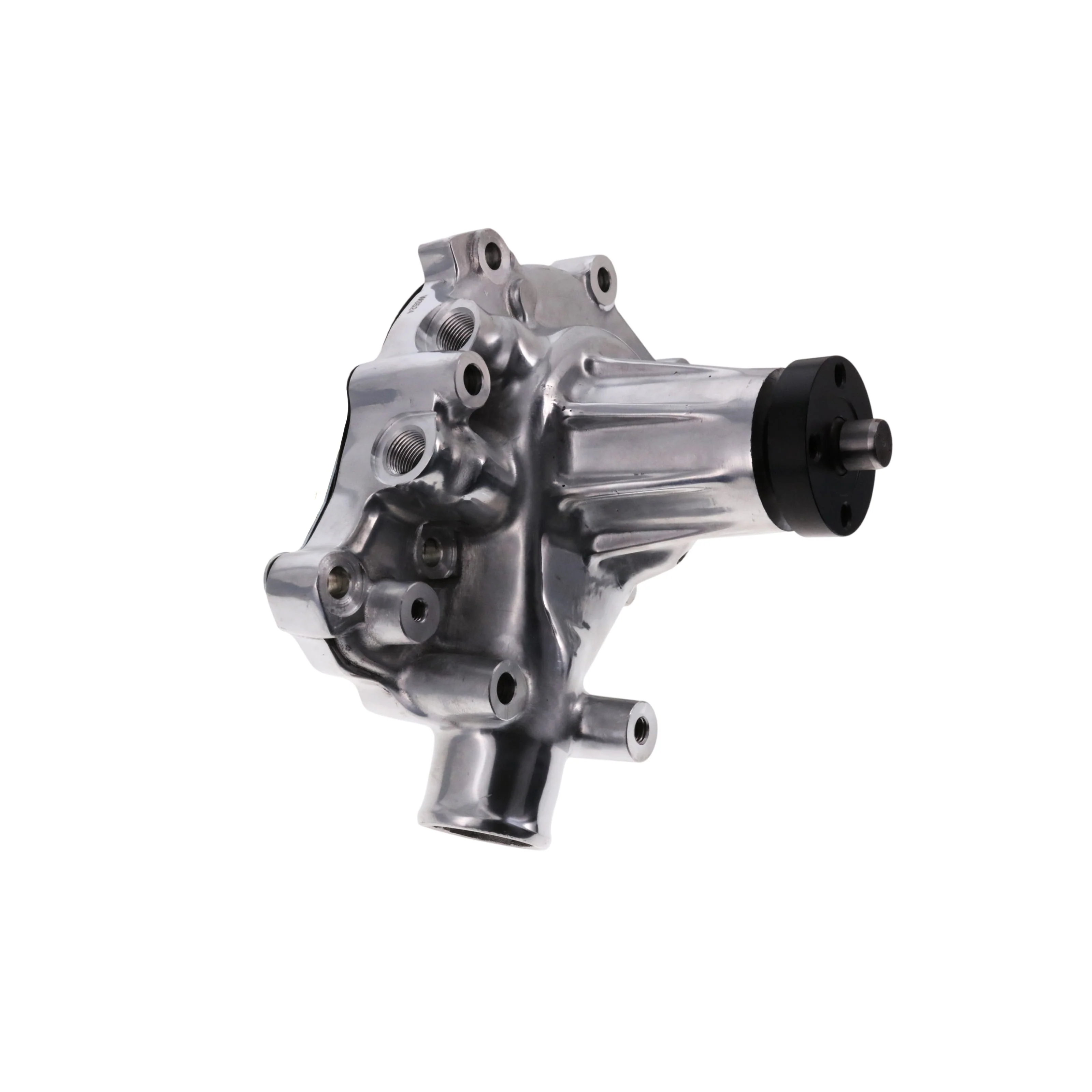

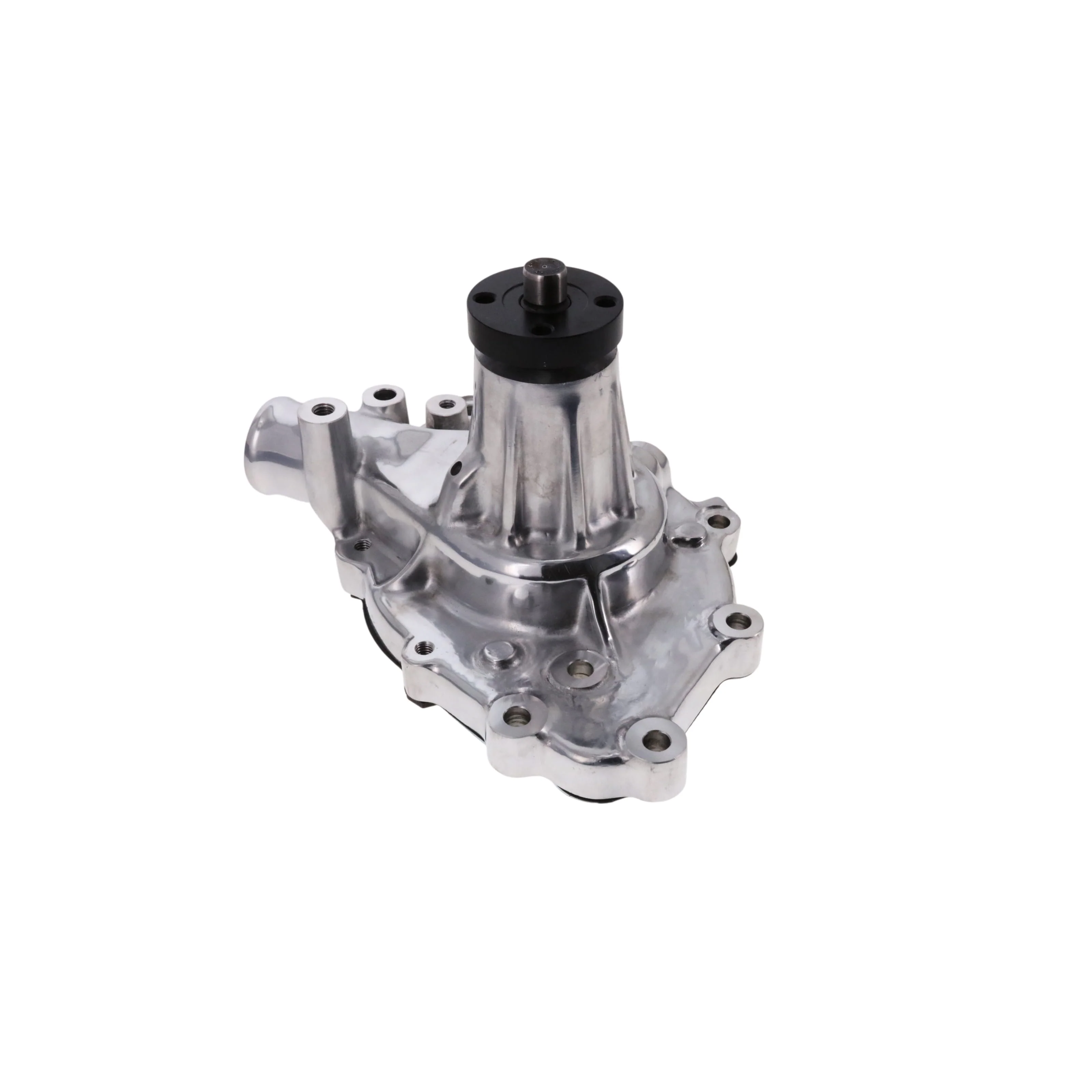

TSP's high-flow mechanical water pumps provide that extra cooling power your high-performance engine demands. They are lightweight and flow at a rate up to 40% over stock pumps.

Lightweight Aluminum Housing
All mechanical water pumps from TSP are cast from lightweight A356 aluminum and heat-treated to T6 hardness. This not only provides strength, but aluminum works to manage heat far better than cast iron. They are available in a satin, polished, or chrome finish.

High Quality Components
From top to bottom, TSP's mechanical pumps are designed for greater performance and reliability. They feature an 8-blade, cast aluminum anti-cavitation impeller. Its 5/8" shaft is driven by heavy-duty bearings and seals, and the crank hub is 1/2" thick for added strength.

Compatible with

FORD SMALL BLOCK WINDSOR V8
• 4.9 L / 289 in3
• 5.0 L / 302 in3
• 5.8 L / 351 in3 commonly referred to as 351W

NOTE: Fits many '65-'73 models with passenger-side inlet only

Color	Silver
Fan Clutch Included	No
Finish	Polished
Gasket Included	Yes
Grade Type	Performance
Housing Material	Aluminum
Hub Height	5.437 in.
Hub Hole Quantity	8
Hub Thickness	0.500 in.
Impeller Material	Aluminum
Impeller Rotation	Clockwise
Impeller Vane Quantity	8
Includes Back Housing	Yes
Inlet Orientation	Passenger Side
Mounting Hardware Included	No
Mounting Hole Quantity	11
Outlet Quantity	1
Pilot Diameter	0.625 in.
Pulley Included	No
Pump Flow	High-volume
Thermostat And Housing Included	No
Water Pump Drive Type	Mechanical
