Ford Coyote Swap Oil Pan for 53-79 Ford Trucks - Satin

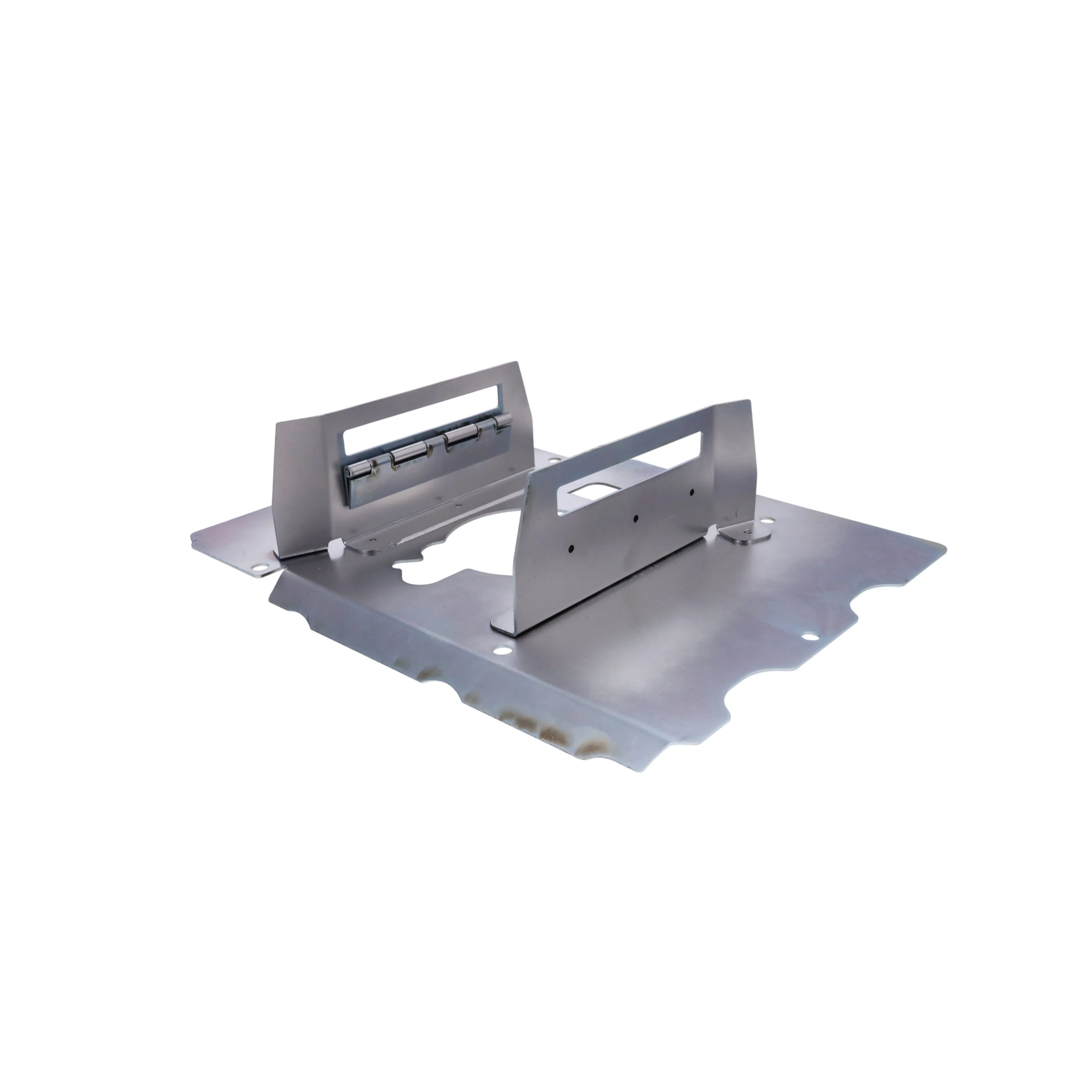

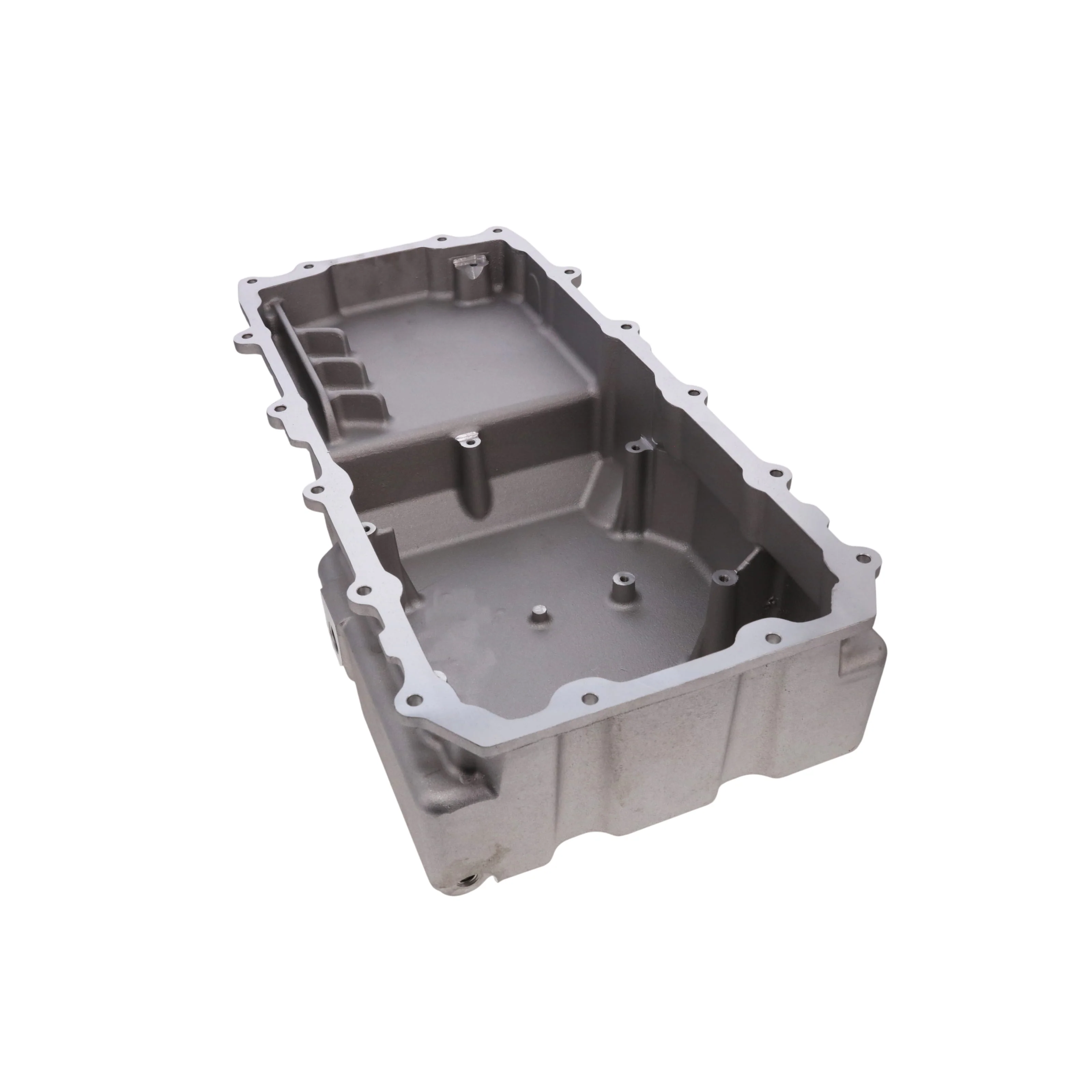

TSP's new swap pan for the Coyote is the perfect solution for your old truck. It is composed of cast aluminum for heat management and uses the stock gasket, baffle assembly, and low-oil level sensor for easy installation. Designed for swaps in a 1953-1979 half and three-quarter ton truck, this pan is also ideal for a variety of other applications.
COMPATIBLE WITH
FORD MODULAR V8
• 5.0 L / 302 in3
NOTE: Includes oil pump pickup style for gen 1 and 2, as well as the pickup for gen 3
| Material | Aluminum |
| Color | Silver |
| Finish | Satin |
| Gasket or Seal Included | Yes |
| Mounting Hole Quantity | 16 |
| Capacity | 7.6 qt. |
| Baffled | No |
| Crank Shaft Wiper Included | No |
| Maximum Depth | 5.140 in. |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Kick Out Type Pan | No |
| Pickup Included | Yes |
| Sump Location | Rear |
| Sump Type | Wet |
| Windage Tray Included | No |
| Drain Thread Size | 12mm x 1.75 |
| Baffle Included | Yes |
| Mounting Hardware Included | Yes |
| Oil Filter Location | Stock |
| Oil Filter Stud Included | No |
| Oil Passage Cover Included | No |
TSP's new swap pan for the Coyote is the perfect solution for your old truck. It is composed of cast aluminum for heat management and uses the stock gasket, baffle assembly, and low-oil level sensor for easy installation. Designed for swaps in a 1953-1979 half and three-quarter ton truck, this pan is also ideal for a variety of other applications.
COMPATIBLE WITH
FORD MODULAR V8
• 5.0 L / 302 in3
NOTE: Includes oil pump pickup style for gen 1 and 2, as well as the pickup for gen 3
| Material | Aluminum |
| Color | Silver |
| Finish | Satin |
| Gasket or Seal Included | Yes |
| Mounting Hole Quantity | 16 |
| Capacity | 7.6 qt. |
| Baffled | No |
| Crank Shaft Wiper Included | No |
| Maximum Depth | 5.140 in. |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Kick Out Type Pan | No |
| Pickup Included | Yes |
| Sump Location | Rear |
| Sump Type | Wet |
| Windage Tray Included | No |
| Drain Thread Size | 12mm x 1.75 |
| Baffle Included | Yes |
| Mounting Hardware Included | Yes |
| Oil Filter Location | Stock |
| Oil Filter Stud Included | No |
| Oil Passage Cover Included | No |
Original: $440.00
-70%$440.00
$132.00Description
TSP's new swap pan for the Coyote is the perfect solution for your old truck. It is composed of cast aluminum for heat management and uses the stock gasket, baffle assembly, and low-oil level sensor for easy installation. Designed for swaps in a 1953-1979 half and three-quarter ton truck, this pan is also ideal for a variety of other applications.
COMPATIBLE WITH
FORD MODULAR V8
• 5.0 L / 302 in3
NOTE: Includes oil pump pickup style for gen 1 and 2, as well as the pickup for gen 3
| Material | Aluminum |
| Color | Silver |
| Finish | Satin |
| Gasket or Seal Included | Yes |
| Mounting Hole Quantity | 16 |
| Capacity | 7.6 qt. |
| Baffled | No |
| Crank Shaft Wiper Included | No |
| Maximum Depth | 5.140 in. |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Kick Out Type Pan | No |
| Pickup Included | Yes |
| Sump Location | Rear |
| Sump Type | Wet |
| Windage Tray Included | No |
| Drain Thread Size | 12mm x 1.75 |
| Baffle Included | Yes |
| Mounting Hardware Included | Yes |
| Oil Filter Location | Stock |
| Oil Filter Stud Included | No |
| Oil Passage Cover Included | No |
